Coated Membrane

We develop and manufacture coated fabrics and technical membranes together with our customers. Easetry is Honsdar high-end PVC coated membrane manufacturer base, delivering stronger, longer-lasting technical coated textiles with premium surface finishes, stable quality control, and custom engineering for tensile structures and air-supported buildings.

PVC membrane material (also known as PVC coated architectural membrane, PVC coated polyester membrane, tensile membrane fabric, or technical coated membrane) is a premium engineered textile made by applying high-performance PVC coating onto a high-tenacity polyester base cloth and finishing it with an advanced top lacquer (commonly PMMA/PVDF/PVF/TiO₂-like surface systems).

This structure delivers an ideal balance of strength, durability, weldability, waterproof performance, UV resistance, and aesthetic surface finish, making it widely used in tensile membrane structures, shade sails, canopies, stadium roofs, air-supported buildings, and other long-life outdoor architecture.

Our high-end technical membrane production is focused on coating precision, long-term weathering performance, and stable mechanical properties.

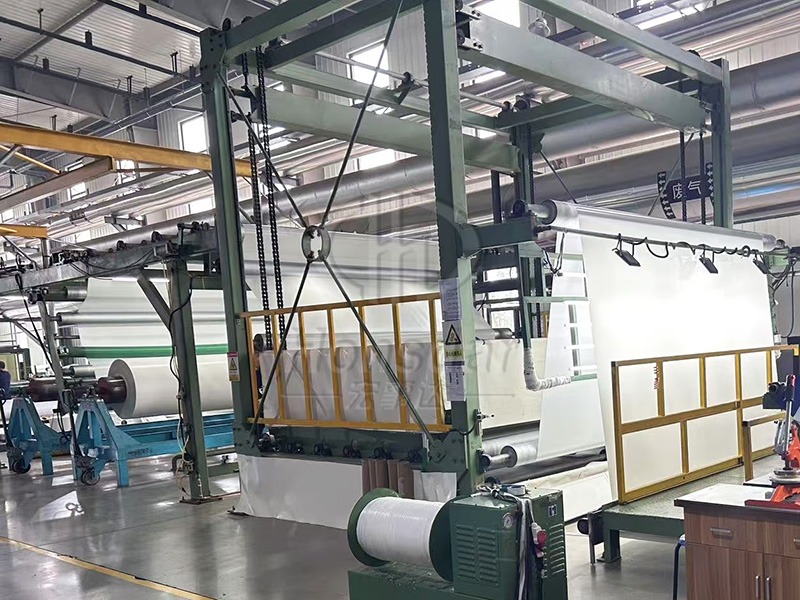

Typical manufacturing workflow:

1. Engineering the polyester base cloth (scrim) Select denier, weave structure, and strength targets (warp/weft) for dimensional stability.

2. PVC formulation and compounding PVC resin + plasticizer + stabilizers + pigments + functional additives (UV, anti-fungal, FR, anti-static, etc.).

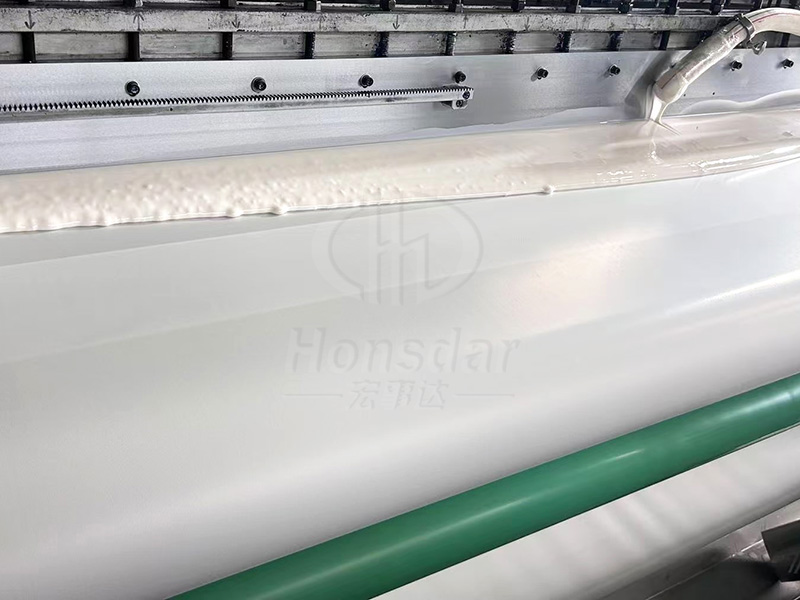

3. Multi-pass knife coating for controlled thickness Achieve accurate coating build, consistent GSM, and stable membrane performance.

4. Heat curing and bonding control Optimize adhesion, flexibility, and long-term durability.

5. Surface finishing & embossing (if required) Matte / semi-gloss / glossy, low-soil textures, anti-slip patterns.

6. Top lacquer system (Easetry Developed the formula independently) Advanced high-end topcoat improves UV stability, anti-soiling, self-cleaning effect, and weather resistance.

7. Testing & quality control Tensile/tear, adhesion, waterproofness, UV aging, flame retardancy, and visual surface inspection.

8. Membrane-ready packing Export roll packing designed to protect lacquer surface and prevent creasing damage.

Honsdar premium coated textiles are designed for projects requiring stronger structure, longer service life, and better appearance retention.

Key advantages:

• High tensile strength & tear resistance for long-span architectural membranes

• Excellent dimensional stability for accurate tensioning, patterning, and installation

• Superior weldability (hot air / hot wedge / high-frequency depending on specification)

• Low water absorption / anti-wicking performance to reduce moisture penetration and improve stability in wet climates

• Anti-mildew / anti-fungal protection to resist mold growth in humid, coastal, and tropical environments

• Enhanced aging resistance with optimized stabilizers and lacquer systems for slower degradation over time

• Long-term outdoor durability: UV resistant, weather resistant, hydrolysis resistance options

• Anti-soiling / easy-clean top lacquer for cleaner surfaces and improved long-term aesthetics

• Waterproof membrane performance with consistent coating weight and surface uniformity

• Flame retardant membrane fabric options for public venues and regulated projects

• Custom aesthetics: stable color matching, gloss control (matte / semi-gloss / glossy), premium finish

Our architectural and technical membrane materials are engineered for:

• Tensile membrane structures (canopies, shade structures, walkways, entrances)

• Stadium and arena roofing membranes

• Public venue coverings (expo halls, commercial plazas, transport hubs)

• Parking shade canopies / carports

• Swimming pool shade roofs and sports facility covers

• Air-supported / air-inflated buildings (air domes, inflatable halls, temporary structures)

• Industrial and logistics large-span covers where strength + durability are critical

For architectural membrane projects, the most important selection factors usually include fire performance, mechanical strength, durability, and regulatory compliance.

Common standards and documents buyers request:

• Fire performance / flame retardancy: EN 13501-1 (Euroclass), DIN 4102-B1, NFPA 701 (market-dependent)

• Mechanical performance testing: tensile strength, tear strength, adhesion, seam strength, dimensional stability

• Weathering & durability: UV aging, temperature resistance, mildew resistance, long-term outdoor exposure targets

• Compliance: REACH (EU chemical compliance), factory quality management such as ISO 9001

We support project-based documentation and can recommend the test standard set based on your country, tender requirements, and application type.

Yes. We provides membrane fabrics for air-supported structures (also called air dome membrane, air-inflated building fabric, or pneumatic architecture membrane). These materials typically require:

• high tensile strength with stable elongation control

• reliable airtight / waterproof behavior (structure-dependent)

• durable lacquer system for long-term exposure

• optional FR flame retardant compliance for public venues

Our architectural PVC membrane materials are built to maintain performance and appearance under demanding outdoor conditions:

• Enhanced lacquer protection to reduce dirt pickup and improve cleanability

• UV & weather resistance to slow down aging and color change

• Stable coating adhesion to support long-term tensioned applications

• Project-grade consistency to support repeat orders and large-area installations

If your project targets longer lifespan, higher aesthetic requirements, or stricter fire codes, Easetry high-end membrane range is designed for that level.

We offer custom membrane material manufacturing for fabricators, membrane structure companies, and project contractors.

Customization options include:

• Base cloth strength level (warp/weft tensile targets)

• Total weight (GSM) & thickness

• Width and roll length

• Color matching and surface gloss (matte / semi-gloss / glossy)

• Top lacquer selection: enhanced UV, anti-soiling, easy-clean, improved weathering

• Functional additives: FR flame retardant, anti-mildew, anti-static, cold resistance

• Processing-friendly design: weldability optimization, keder-related handling needs (application-based)

• Private label packaging and export logistics customization

Send Honsdar your application (tensile structure / stadium roof / air dome), target fire standard (EN 13501-1 / DIN 4102-B1 / NFPA 701), required GSM, width, and climate conditions. We will recommend the best PVC coated membrane specification and provide technical data and samples.
